3″ × 90 Degree Face & Shoulder Mill for WNMX0806 Inserts – 7 Pocket

  • 3″ cutting diameter
  • 90° face and shoulder milling cutter
  • Accepts standard WNMX0806 carbide inserts
  • 7-pocket design for higher metal removal rates
  • Double-sided inserts for reduced tooling costs
  • Precision-ground insert seats for repeatable accuracy
  • Excellent for face milling and square shoulder machining
  • Strong cutter body for rigidity and stable machining
  • Efficient chip evacuation for improved cutting performance
  • Suitable for steel, stainless steel, cast iron, and non-ferrous materials
  • Compatible with CNC machining centers and conventional milling machines
  • Ideal for roughing and semi-finishing applications

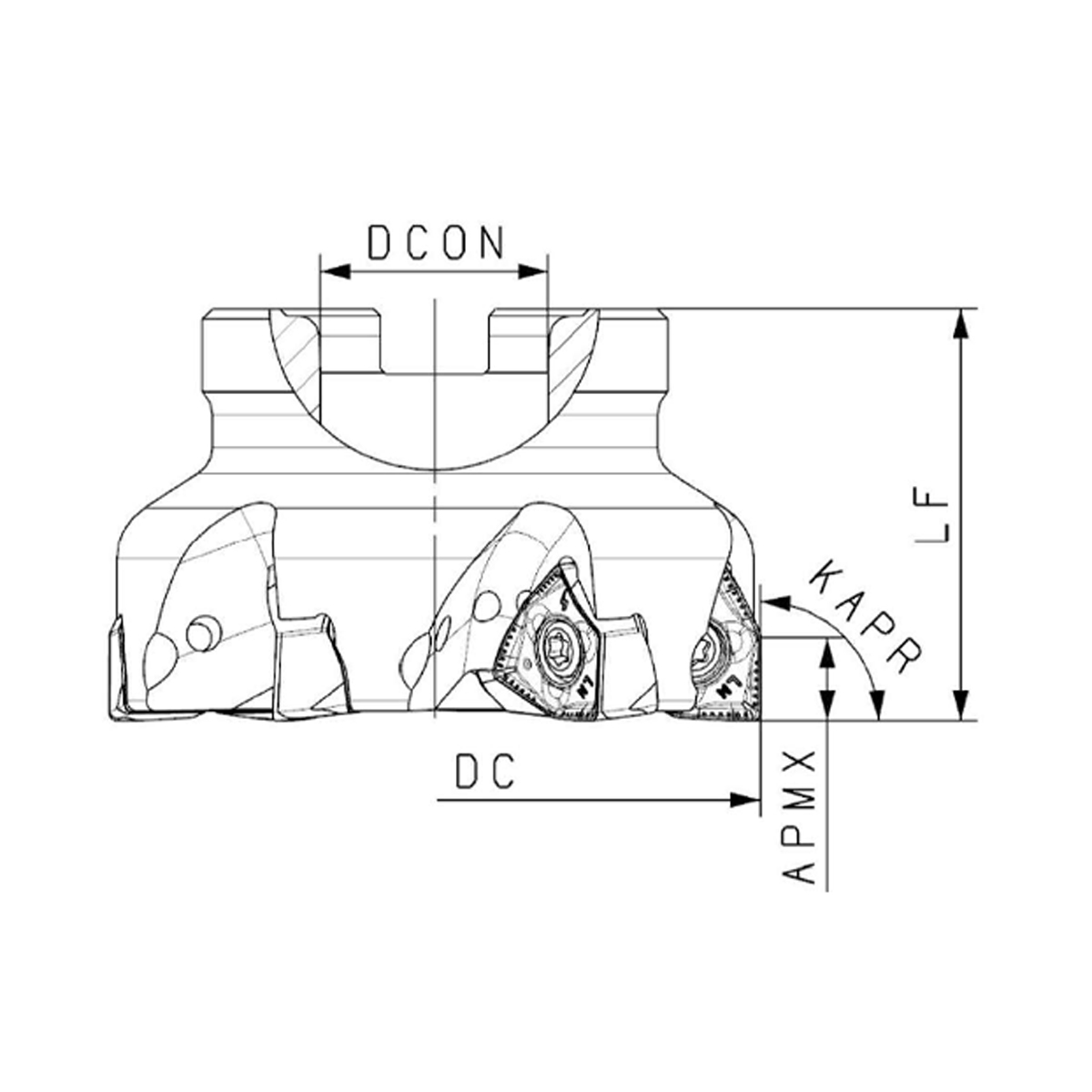

  • LF : 1.75″
  • DC : 1″
  • APMX : 0.315″
  • KARP : 90º
  • Arbore Diameter DCON : 1″
  • Inserts to fit : WNMX 0806
  • Inserts are not included

$458.00

2 in stock

The 3″ 90° Indexable Face & Shoulder Mill is designed for high-performance face milling and square shoulder machining using WNMX0806 carbide inserts. Featuring a 7-pocket cutter body, it delivers excellent productivity, smooth cutting performance, and economical operation by utilizing double-sided replaceable inserts. Suitable for CNC machining centers and conventional milling machines, this cutter provides reliable performance across a wide range of materials when paired with the appropriate insert grade.

  • Weight:
    7 lbs
  • Dimensions:
    8 × 5 × 4 in
  • Brand:
Maple Tools
