Threaded support rod provides precise height adjustment for stable workpiece support Ideal for supporting large, heavy, or irregularly shaped workpieces…

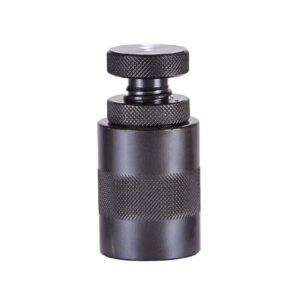

100-150mm Screw Jack VSJ-150 VERTEX
Threaded support rod provides precise height adjustment for stable workpiece support
Ideal for supporting large, heavy, or irregularly shaped workpieces
Fine-thread adjustment allows accurate positioning and setup
Compact design enables use in confined workholding and fixture setups
Quick and easy repositioning without the need for clamps or fasteners
Suitable for milling, drilling, grinding, inspection, and assembly applications
Essential workholding accessory for CNC machining centers and conventional machine tools
A : 100mm
B : 150mm
c: 40mm
D : 50mm
Allowed load : 30KN
Brand : VERTEX Taiwan
$ 67.50
10 in stock
Made of heavy duty Cast iron Jaws width : 110mm Jaws opening : 220mm Jaws Height : 36mm Tilting range…
2-WAY ANGLE MILLING VISE VWT-4B
Made of heavy duty Cast iron
Jaws width : 110mm
Jaws opening : 220mm
Jaws Height : 36mm
Tilting range : 0-50º
Max. Clamping Force : 1,200kgf
Overall length : 500mm
Accuracy : 0.01mm/100mm
Swivel base graduated to 360º
Brand : VERTEX Taiwan
$ 1,467.12
2 in stock
Catalouge
Made of heavy duty Cast iron Jaws width : 130mm Jaws opening : 100mm Tilting range : 0-90º T-Slot bolt…

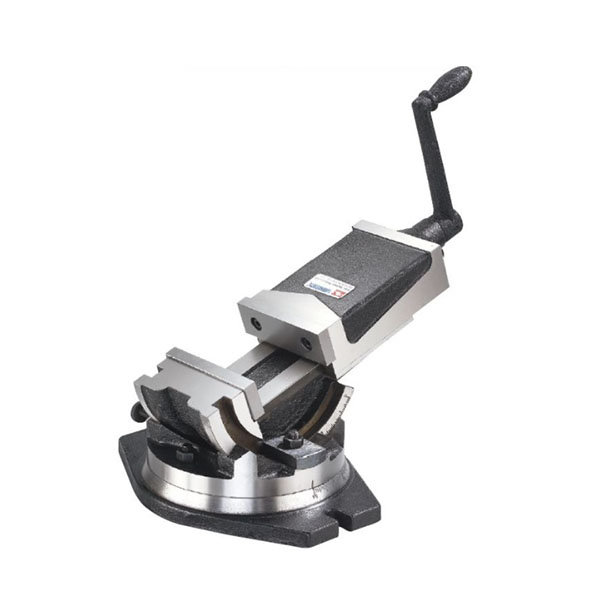

2-WAY ANGLE MILLING VISE VWT-5
Made of heavy duty Cast iron
Jaws width : 130mm
Jaws opening : 100mm
Tilting range : 0-90º
T-Slot bolt : 16mm
Overall length : 415mm
Brand : VERTEX Taiwan
$ 957.70
1 in stock
Made of heavy duty Cast iron Jaws width : 152mm Jaws opening : 350mm Jaws Height : 36mm Tilting range…
2-WAY ANGLE MILLING VISE VWT-6B
Made of heavy duty Cast iron
Jaws width : 152mm
Jaws opening : 350mm
Jaws Height : 36mm
Tilting range : 0-50º
Max. Clamping Force : 1,600kgf
Overall length : 8000mm
Accuracy : 0.01mm/100mm
Swivel base graduated to 360º
Brand : VERTEX Taiwan
$ 1,822.60
2 in stock
Catalouge
Angles can be set in 3 dimensions. Swivel base rotation : 360º Jaw Width A : 80mm Opening : 85mm…

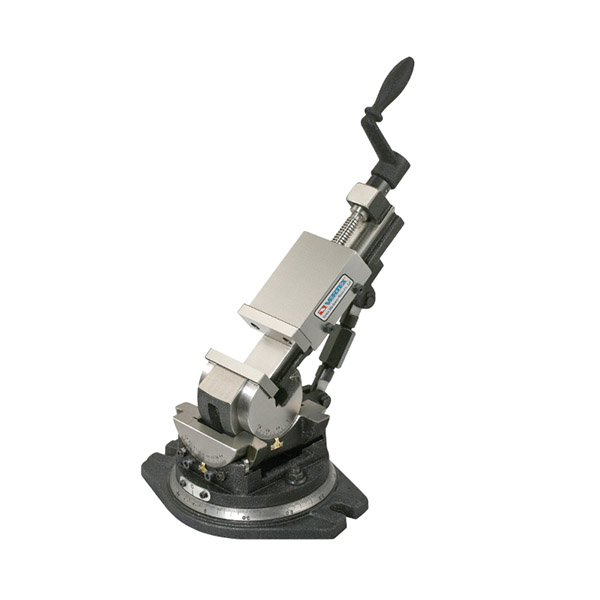

3-WAY ANGLE MILLING VISE VW-3
Angles can be set in 3 dimensions.
Swivel base rotation : 360º
Jaw Width A : 80mm
Opening : 85mm
Jaw Height B : 31mm
D : 126mm
E : 335mm
E1 : 370mm
F : 15mm
G : 210mm
H : 127mm
I : 157mm
J : 240mm
K : 185mm
L : 10mm
M : 95mm
N : 16mm
P : 405mm
Maximum Clamping Force : 16.7Kgf
$ 1,019.96
Out of stock
Angles can be set in 3 dimensions. Swivel base rotation : 360º Jaw Width A : 110mm Opening C :…

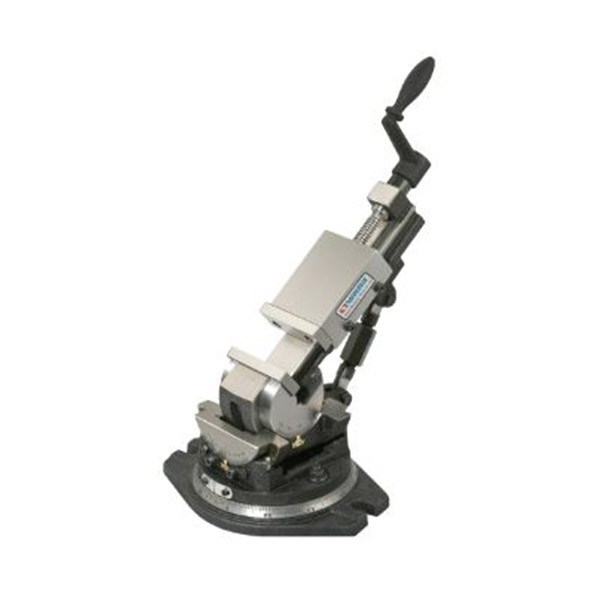

3-WAY ANGLE MILLING VISE VW-4
Angles can be set in 3 dimensions.
Swivel base rotation : 360º
Jaw Width A : 110mm
Opening C : 116mm
Jaw Height B : 38mm
D : 152mm
E : 448mm
E1 : 497mm
F : 17mm
G : 276mm
H : 157mm
I : 190mm
J : 311mm
K : 245mm
L : 13mm
M : 135mm
N : 16mm
P : 500mm
Maximum Clamping Force : 32.7Kgf
$ 932.63
1 in stock
Angles can be set in 3 dimensions Swivel base rotation : 360º Jaw Width A : 135mm Opening : 145mm…
3-WAY ANGLE MILLING VISE VW-5
Angles can be set in 3 dimensions
Swivel base rotation : 360º
Jaw Width A : 135mm
Opening : 145mm
Jaw Height B : 40mm
D : 170mm
E : 530mm
E1 : 580mm
F : 17mm
G : 310mm
H : 173mm
I : 210mm
J : 358mm
K : 271mm
L : 13mm
M : 140mm
N : 16mm
P : 600mm
Maximum Clamping Force : 49.4Kgf
$ 1,526.42
2 in stock
Precision Double Clamp Vise Jaw Width B : 3.94" Jaw Opening S1 : 2.76" Depth of Jaws H : 1.38"…
4 inch Jaw Width Double Clamp Machine Vise
Precision Double Clamp Vise
Jaw Width B : 3.94″
Jaw Opening S1 : 2.76″
Depth of Jaws H : 1.38″
Height of Bed T : 2.36″
Overall Length L : 18.11″
Can be used as Self Centering Vise if the fixed Jaw is removed
Max. Opening when the center Jaw is removed S : 8.15″
$ 463.94
Out of stock
Reversible jaws to extend the clamping range For Self Centering Vise with Width : 100mm
4″ Dovetail Clamping Jaws for 5-Axis Vise
Reversible jaws to extend the clamping range
For Self Centering Vise with Width : 100mm
$ 237.58
2 in stock
Precision lock-fixed design ensures outstanding accuracy and repeatability Hardened and precision-ground vise body, jaws, and guideways for extended service life…
4″ x 4″ LOCK FIXED II PRECISION MACHINE VISE VMC-4
Precision lock-fixed design ensures outstanding accuracy and repeatability
Hardened and precision-ground vise body, jaws, and guideways for extended service life
High clamping force provides secure workpiece holding during heavy machining operations
Pull-down jaw mechanism minimizes workpiece lift and improves machining accuracy
Precision-ground bed and reference surfaces ensure excellent flatness and parallelism
Rigid ductile cast iron construction reduces vibration and enhances stability
Fixed-jaw design maintains consistent positioning and repeatable setups
Can be mounted individually or in multiples for production machining
Precision-machined slideways provide smooth jaw movement and reliable clamping performance
Ideal for precision milling, drilling, tapping, boring, and inspection applications.
Designed for high-accuracy machining where repeatability and rigidity are critical
Can be mounted horizontally or on its side for maximum setup flexibility
Width : 4″
Jaw Opening : 4″
Jaw Depth : 1.42″
Bed Height : 2.48″
Accuracy : 0.0004″/4″
Overall Length : 14.7″
Brand : VERTEX Taiwan
$ 696.35
2 in stock
Modular workholding system designed for flexible CNC machining and production environments Expandable design allows multiple vises to be connected on…

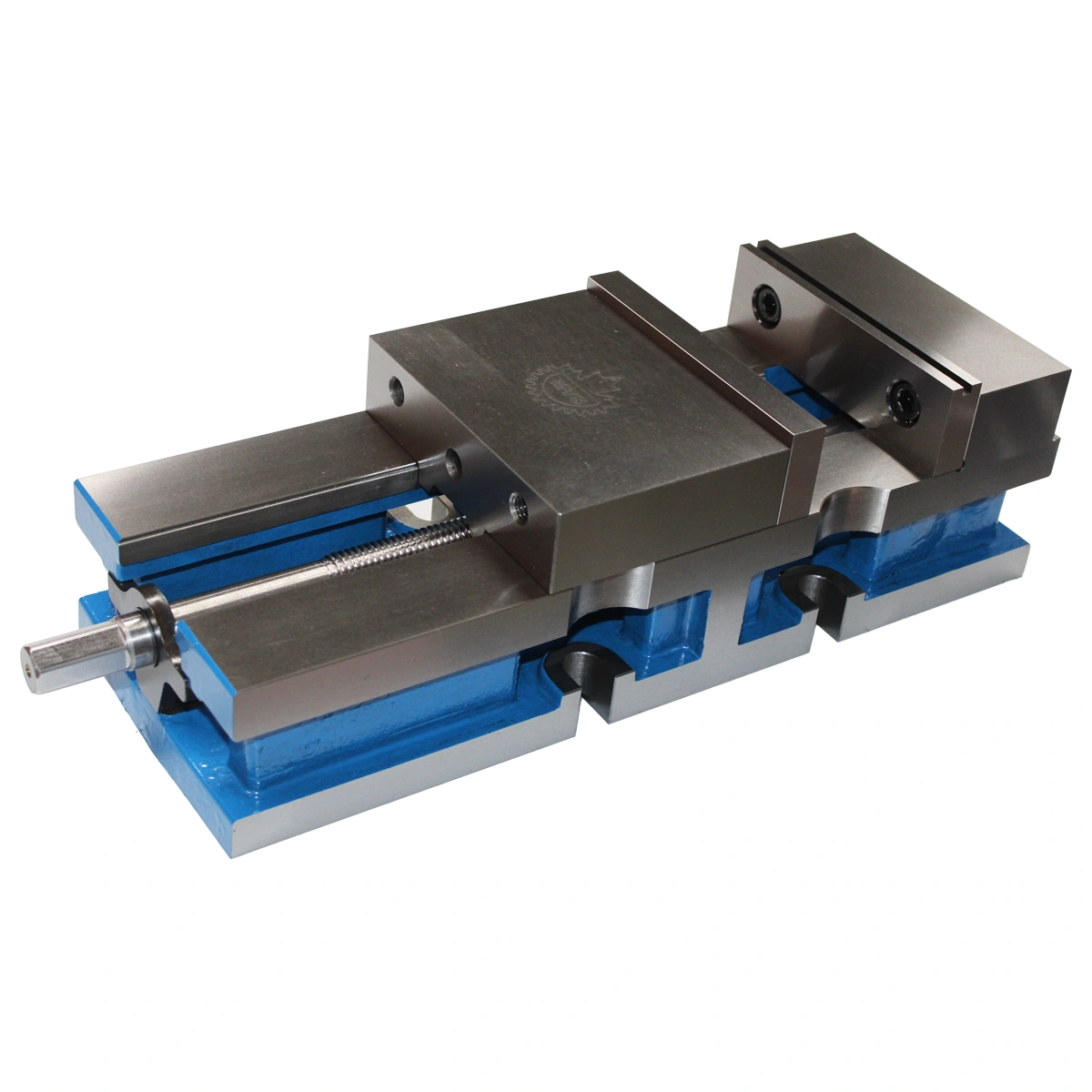

4″ x 6″ Precision Modular Machine Vise
Modular workholding system designed for flexible CNC machining and production environments
Expandable design allows multiple vises to be connected on a single machine table
Can be mounted horizontally or on its side for maximum setup versatility
Precision-ground on all reference surfaces for excellent accuracy and repeatability
High clamping force ensures secure and stable workpiece holding during heavy machining
Pull-down jaw action minimizes workpiece lift and improves machining accuracy
Hardened and ground jaws provide exceptional wear resistance and long service life
Rigid construction minimizes vibration and enhances surface finish quality
Precision guideways ensure smooth jaw movement and consistent clamping performance
Quick setup and repositioning reduce machine downtime and increase productivity
Ideal for CNC milling, drilling, tapping, boring, and precision machining operations
Designed for high-accuracy production environments where repeatability is critical
Precision-ground on all surfaces, allowing accurate positioning in both horizontal and vertical mounting applications
Jaw Width B : 4″
Opening Smax : 6″
Jaw Height H : 1.20″
Bed Height T : 1.57″
Overall Length : 12.5″
Accuracy : 0.0002″/0.005mm
$ 687.50
4 in stock
Designed to securely hold workpieces from multiple angles Reversible jaws to extend the clamping range Serrated gripper Teeth Jaws Width…
5-Axis 3 x 4″ Self Centering Vise VA1-3X4
Designed to securely hold workpieces from multiple angles
Reversible jaws to extend the clamping range
Serrated gripper Teeth
Jaws Width W : 80mm
Opening S1 Max : 108mm
S2 Max : 152mm
S3 Max : 144mm
M : 10mm
W1 : 55mm
Overall Length : 200mm
Accuracy : 0.01mm
High Clamping Force
Wrench ,4 clamps, a pair of positioning pins and a pair of parallels are included
$ 1,404.00
4 in stock
Designed to securely hold workpieces from multiple angles Reversible jaws to extend the clamping range Serrated gripper Teeth Jaws Width…
5-Axis 4 x 4″ Self Centering Vise VA1-4X4
Designed to securely hold workpieces from multiple angles
Reversible jaws to extend the clamping range
Serrated gripper Teeth
Jaws Width W : 100mm
Opening S1 Max : 108mm
S2 Max : 152mm
S3 Max : 144mm
M : 10mm
W1 : 65mm
Overall Length : 200mm
High Clamping Force
Wrench ,4 clamps, a pair of positioning pins and a pair of parallels are included
$ 1,492.88
5 in stock
Designed to securely hold workpieces from multiple angles Reversible jaws to extend the clamping range Serrated gripper Teeth Jaws Width…
5-Axis 4 x 6″ Self Centering Vise
Designed to securely hold workpieces from multiple angles
Reversible jaws to extend the clamping range
Serrated gripper Teeth
Jaws Width W : 100mm
Opening S1 Max : 158mm
S2 Max : 202mm
S3 Max : 194mm
M : 10mm
W1 : 65mm
Overall Length : 250mm
High Clamping Force
Key is included
$ 1,250.42
Out of stock
Designed to securely hold workpieces from multiple angles Reversible jaws to extend the clamping range Serrated gripper Teeth Jaws Width…
5-Axis 4 x 6″ Self Centering Vise VA1-4X6
Designed to securely hold workpieces from multiple angles
Reversible jaws to extend the clamping range
Serrated gripper Teeth
Jaws Width W : 100mm
Opening S1 Max : 158mm
S2 Max : 202mm
S3 Max :194mm
M : 10mm
W1 : 65mm
Overall Length : 250mm
Accuracy within : 0.01mm
High Clamping Force
Wrench ,4 clamps, a pair of positioning pins and a pair of parallels are included
$ 1,683.23
4 in stock
Designed to securely hold workpieces from multiple angles Reversible jaws to extend the clamping range Serrated gripper Teeth Jaws Width…
5-Axis 5 x 6″ Self Centering Vise
Designed to securely hold workpieces from multiple angles
Reversible jaws to extend the clamping range
Serrated gripper Teeth
Jaws Width W : 125mm
Opening S1 Max : 158mm
S2 Max : 202mm
S3 Max : 194mm
M : 10mm
W1 : 90mm
Overall Length : 250mm
High Clamping Force
Key is included
$ 1,612.84
Out of stock
