Double Clamp Vises

View

4 inch Jaw Width Double Clamp Machine Vise

$463.94

4 inch Jaw Width Double Clamp Machine Vise

$463.94

Precision Double Station Vise High Rigidity – Robust construction provides stable workholding during demanding milling operations Reduced Setup & Cycle…

Double clamp machine vise mapletools Double Clamp Vises

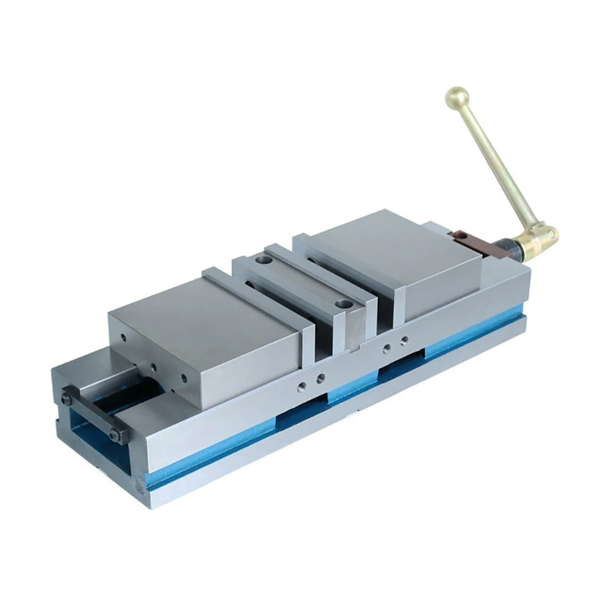

4 inch Jaw Width Double Clamp Machine Vise

SKU: 1002-2010 Category: Double Clamp Vises Tags: 4 inch milling vise, anti lift vise, CNC workholding, double clamp vise, double station vise, dual station vise, machine tool vise, milling machine vise, multiple workpiece vise, Precision Workholding, pull down vise

Precision Double Station Vise
High Rigidity – Robust construction provides stable workholding during demanding milling operations
Reduced Setup & Cycle Time – Machine two parts in one setup for improved production efficiency
Precision-Ground Surfaces – Helps maintain accurate positioning and alignment (if applicable)
Low-Profile, Space-Efficient Design – Maximizes usable machine-table and machining space
Ideal for CNC Production – Excellent for machining centers, production runs, and repetitive multi-part setups
Jaw Width B : 3.94″
Jaw Opening S1 : 2.76″
Depth of Jaws H : 1.38″
Height of Bed T : 2.36″
Overall Length L : 18.11″
Can be used as Self Centering Vise if the fixed Jaw is removed
Max. Opening when the center Jaw is removed S : 8.15″
Accuracy : 0.0004″/0.01mm

$463.94

10 in stock

4 inch Jaw Width Double Clamp Machine Vise quantity

5″ x 3.15″ MC Precision Self-Centering Double Station Machine Vise MCD-5

$1,394.70

5″ x 3.15″ MC Precision Self-Centering Double Station Machine Vise MCD-5

$1,394.70

5" Jaw Width – Precision workholding designed for machining centers and CNC applications 3.15" Maximum Opening – Compact design with…

6 mc precision self centering double station machine vise 5 opening mcd 6 mapletools Double Clamp Vises

5″ x 3.15″ MC Precision Self-Centering Double Station Machine Vise MCD-5

SKU: 1002-5010 Category: Double Clamp Vises

5″ Jaw Width – Precision workholding designed for machining centers and CNC applications
3.15″ Maximum Opening – Compact design with versatile clamping capacity
Anti-Floating & Anti-Lift Jaw Design – Internal floating downward-pressure mechanism
Self-Centering Mechanism – Opposing jaws move simultaneously to automatically center the workpiece
Double-Station Design – Allows efficient multiple-part clamping for increased productivity
Convertible to Self-Centering – Simply remove the stationary center jaw to convert the double-station configuration into a self-centering vise
Precision MC Vise Construction – Designed for accurate and repeatable CNC machining setups
Internal Floating Downward-Pressure Mechanism – Generates a positive downward locking force during clamping to minimize jaw lift and prevent workpiece tilting
Balanced Clamping Force – Applies even pressure from both sides for secure workholding
Quick Setup & Part Changes – Self-centering action reduces positioning and setup time
Matched Height for Multiple-Vise Setups – Consistent vise height is guaranteed
Production Ready – Ideal for CNC machining centers, repetitive production, and multi-part setups
Accuracy : 0.01mm/0.0004″
Jaws Height : 2.16″
Overall Length : 17.72″
Handle and Clamps are included in each set

$1,394.70

4 in stock

5" x 3.15" MC Precision Self-Centering Double Station Machine Vise MCD-5 quantity

6 inch Jaw Width Double Clamp Machine Vise

$796.00

6 inch Jaw Width Double Clamp Machine Vise

$796.00

Precision Double Clamp Vise High Rigidity – Robust construction provides stable workholding during demanding milling operations Reduced Setup & Cycle…

6 inch Jaw Width Double Clamp Machine Vise

SKU: 1002-2320 Category: Double Clamp Vises

Precision Double Clamp Vise
High Rigidity – Robust construction provides stable workholding during demanding milling operations
Reduced Setup & Cycle Time – Machine two parts in one setup for improved production efficiency
Precision-Ground Surfaces – Helps maintain accurate positioning and alignment (if applicable)
Low-Profile, Space-Efficient Design – Maximizes usable machine-table and machining space
Ideal for CNC Production – Excellent for machining centers, production runs, and repetitive multi-part setups
Jaw Width B : 6.3″
Jaw Opening S1 : 3.54″
Depth of Jaws H : 1.97″
Height of Bed T : 3.15″
Overall Length L : 24″
Can be used as Self Centering Vise if the fixed Jaw is removed
Max. Opening when the center Jaw is removed S : 10″
Accuracy : 0.0004″/0.01mm

$796.00

10 in stock

6 inch Jaw Width Double Clamp Machine Vise quantity

6″ x 4.3″ Double Opening Modular Vise

$2,416.00

6″ x 4.3″ Double Opening Modular Vise

$2,416.00

Precision Modular Double Station Vise Jaw Width : 6" Jaw Opening : 2 x 4.33" Jaw Height : 1.97" Bed…

double opening modular vise Double Clamp Vises

6″ x 4.3″ Double Opening Modular Vise

SKU: 1002-2340 Categories: Double Clamp Vises, Modular Vises

Precision Modular Double Station Vise
Jaw Width : 6″
Jaw Opening : 2 x 4.33″
Jaw Height : 1.97″
Bed Height : 2″
Overall Length : 23″
Accuracy : 0.0002″
Overall Opening if the middle Jaw is removed : 12″

$2,416.00

2 in stock

6" x 4.3" Double Opening Modular Vise quantity

6″ x 5″ MC Precision Self-Centering Double Station Machine Vise MCD-6

$1,583.50

6″ x 5″ MC Precision Self-Centering Double Station Machine Vise MCD-6

$1,583.50

6" Jaw Width – Precision workholding designed for machining centers and CNC applications 5" Maximum Opening – Compact design with…

6″ x 5″ MC Precision Self-Centering Double Station Machine Vise MCD-6

SKU: 1002-5020 Category: Double Clamp Vises

6″ Jaw Width – Precision workholding designed for machining centers and CNC applications
5″ Maximum Opening – Compact design with versatile clamping capacity
Anti-Floating & Anti-Lift Jaw Design – Internal floating downward-pressure mechanism
Self-Centering Mechanism – Opposing jaws move simultaneously to automatically center the workpiece
Double-Station Design – Allows efficient multiple-part clamping for increased productivity
Convertible to Self-Centering – Simply remove the stationary center jaw to convert the double-station configuration into a self-centering vise
Precision MC Vise Construction – Designed for accurate and repeatable CNC machining setups
Internal Floating Downward-Pressure Mechanism – Generates a positive downward locking force during clamping to minimize jaw lift and prevent workpiece tilting
Balanced Clamping Force – Applies even pressure from both sides for secure workholding
Quick Setup & Part Changes – Self-centering action reduces positioning and setup time
Matched Height for Multiple-Vise Setups – Consistent vise height is guaranteed
Production Ready – Ideal for CNC machining centers, repetitive production, and multi-part setups
Accuracy : 0.01mm/0.0004″
Jaws Height : 2.28″
Overall Length : 21.65″
Handle and Clamps are included in each set

$1,583.50

4 in stock

6" x 5" MC Precision Self-Centering Double Station Machine Vise MCD-6 quantity

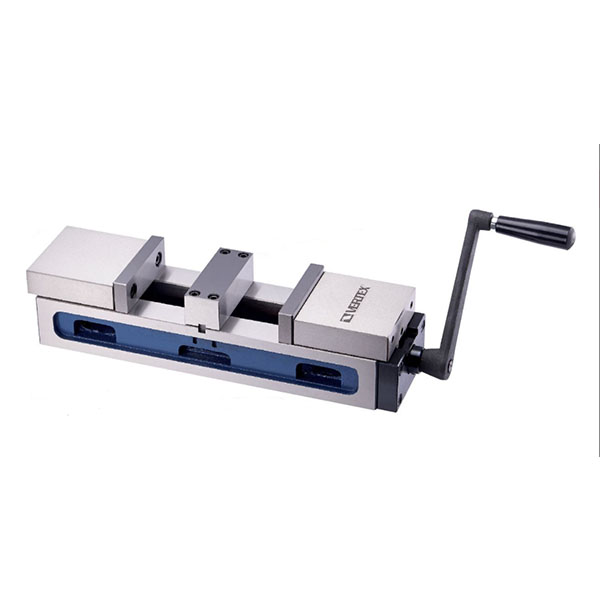

DOUBLE CLAMP VISE VCV-4D

$2,261.59

Opening: 2"(double)/Width: 4.2"/Depth: 1.4" Jaw opening 2" (double), Width 4" Accept 0.12" workpiece different length. The slide ways are hardened.…

DOUBLE CLAMP VISE VCV-4D

SKU: 1002-236 Category: Double Clamp Vises

Opening: 2″(double)/Width: 4.2″/Depth: 1.4″

Jaw opening 2″ (double), Width 4″
Accept 0.12″ workpiece different length.
The slide ways are hardened.
Precision made.
One handle can operate two movable jaws and clamps 2
pieces of workpiece of similiar size, for 3mm space.
Lift Proof : Press down design.

$2,261.59

Out of stock
