8″ 4-Jaw Milling Chuck VMJ-8
- 4-Jaw Self-Centering Design provides secure, accurate, and repeatable workpiece clamping
- Ideal for Milling, Drilling & CNC Machines for precision machining of round, square, and irregular workpieces
- Low-Profile Construction maximizes machining clearance and allows clamping of larger diameter parts
- Soft Jaws Can Be Machined using forming rings (jaw locks) to match the workpiece profile for maximum holding accuracy
- Can Be Used as a 2-Jaw Chuck for securely holding square or rectangular workpieces when required
- Front-Mounted Operating Wrench provides convenient jaw adjustment without interfering with the machine table
- High-Quality Cast Iron Construction delivers excellent rigidity, vibration damping, and long service life
- High Accuracy: ≤0.03 mm (0.0012″) runout for precision machining applications
- Protective Dust Cover Included to help prevent chips and debris from entering the chuck mechanism
- Manufactured by VERTEX Taiwan for dependable quality and durability.
- Wrench is included

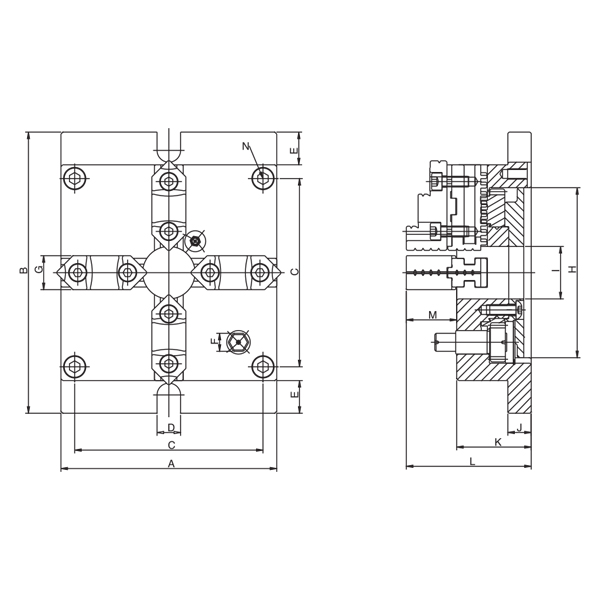

- A : 200mm
- B : 250mm
- C : 174mm
- D : 18mm
- E : 25mm
- G : 28mm
- H : 160mm
- I : 55mm
- J : 20mm
- K : 65mm
- L : 108mm
- M : 43mm
- N : 4 x M10
- Clamping Dia. : 5-162mm
- Proping Dia. : 62-162mm
- Gripping Force : 3,560lbf
- Brand : VERTEX
$2,616.88
2 in stock
